Request for CatalogueModel No. MSI-ATE

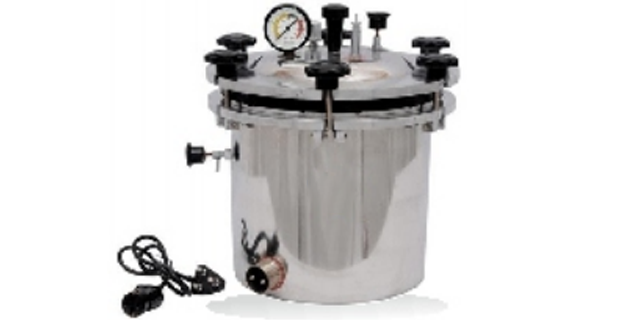

The body is constructed of SS 304 sheet deep drawn to Cylindrical Shape. sheet Suitable of general laboratory use as well as for field sterilization of instruments and dressings etc. Dome shaped SS lid is provided which seals the autoclave with Rubber Gasket. The working pressure is 1.1 to 1.2Kg./ cm2 (15-18PSI). Unit fitted with Pressure Gauge, Spring Loaded Safety Valve, Dead Weight type Safety Valve and Steam Release Valve. The autoclave is hydraulically tested at twice the working pressure as per ISI requirement. requirement. It is fitted with ISI marked heater. Supplied complete with plug cord. Suitable to work on 220/230 Volt, single phase, 50 Hz, AC supply. Size : 350 x 300 – 325 mm (Dia x Ht.)
SPECIFICATION
| MSI-ATE | Size | Capacity | Material |
|---|---|---|---|
| MSI-ATE-A | 220 x 230 mm | 10ltrs | Aluminium |
| MSI-ATE-B | 220 x 230 mm | 10ltrs | Stainless steel |
| MSI-ATE-C | 300 x 260 mm | 21ltrs | Stainless steel |
| MSI-ATE-D | 300 x 300 mm | 24ltrs | Stainless steel |
| MSI-ATE-E | 300 x 350 mm | 28ltrs | Stainless steel |
